CKY1 Series | Y1 250/275/300/500VAC

*Higher dv/dt level than X series

*Better DF value then ceramic Y capacitor

*Slight changes of capacitances under high temperature

*Large capacitances which can not be produced by ceramic capacitor

APPLICATION

*Applying for EMI suppression circuits

*Applied in ground circuits

*Large capacitances items can be space-saving by reducing the paralleling ceramic disc Y capacitors

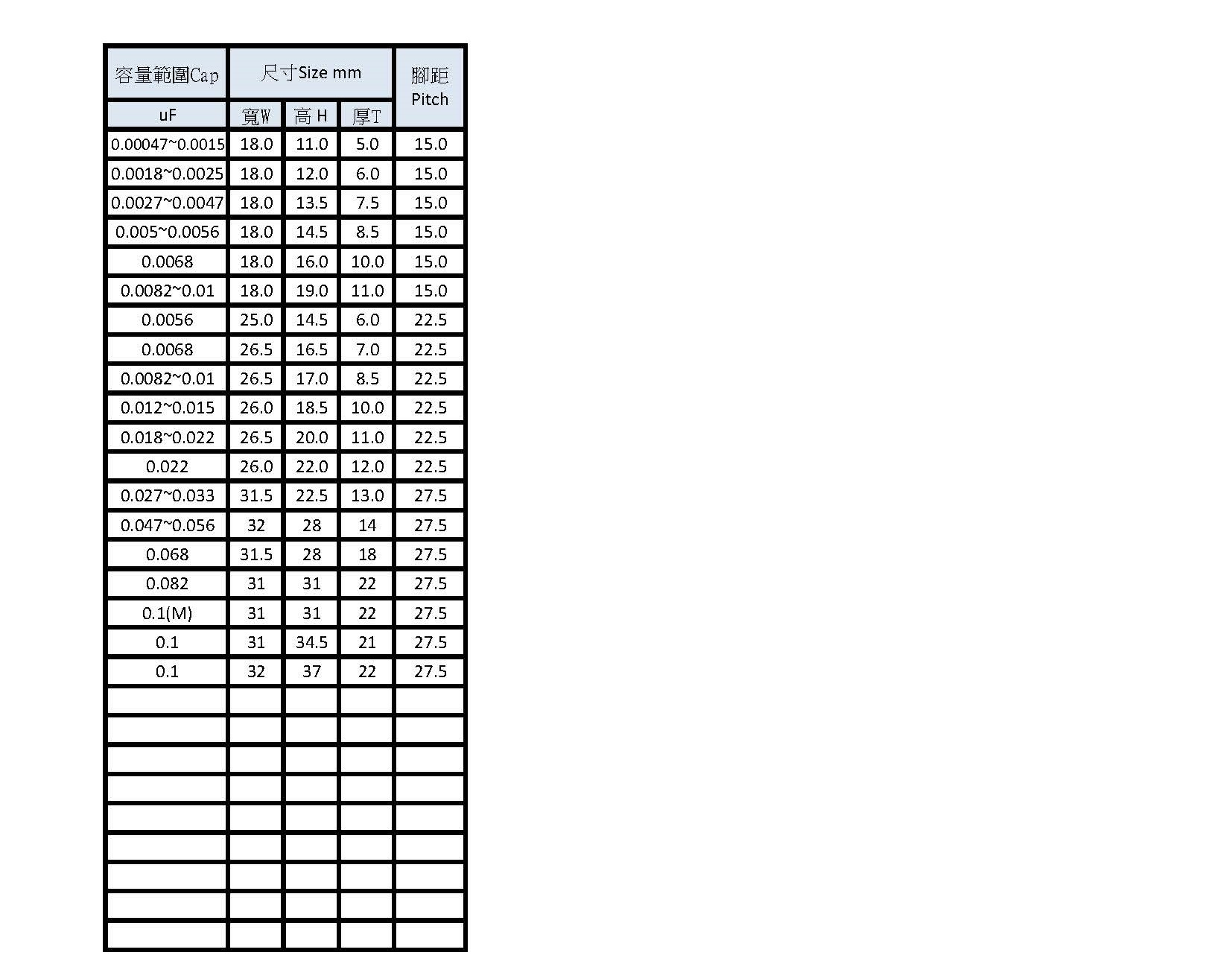

Capacitor Range : 0.00047uF~0.1uF

Rated Voltages : 250/275/300/500VAC

Tolerance : J(±5%),K(±10%),M(±20%)

Climatic Category : -40 ˚C ~+110˚C , 40/110/56/B or GLFB

Product Safety Approvals: cULus / ENEC / CQC
