PPS Series | PPS 630/800/1000/1250/1600/2000VDC

*Series connection type, good endurance for high voltage

*Good endurance of current

*High level of Dv/Dt value

APPLICATION

*Applied in boosting circuit

*Suitable for LLC resonant circuit

*High frequency and high current circuit

*High current with charging and discharging circuit

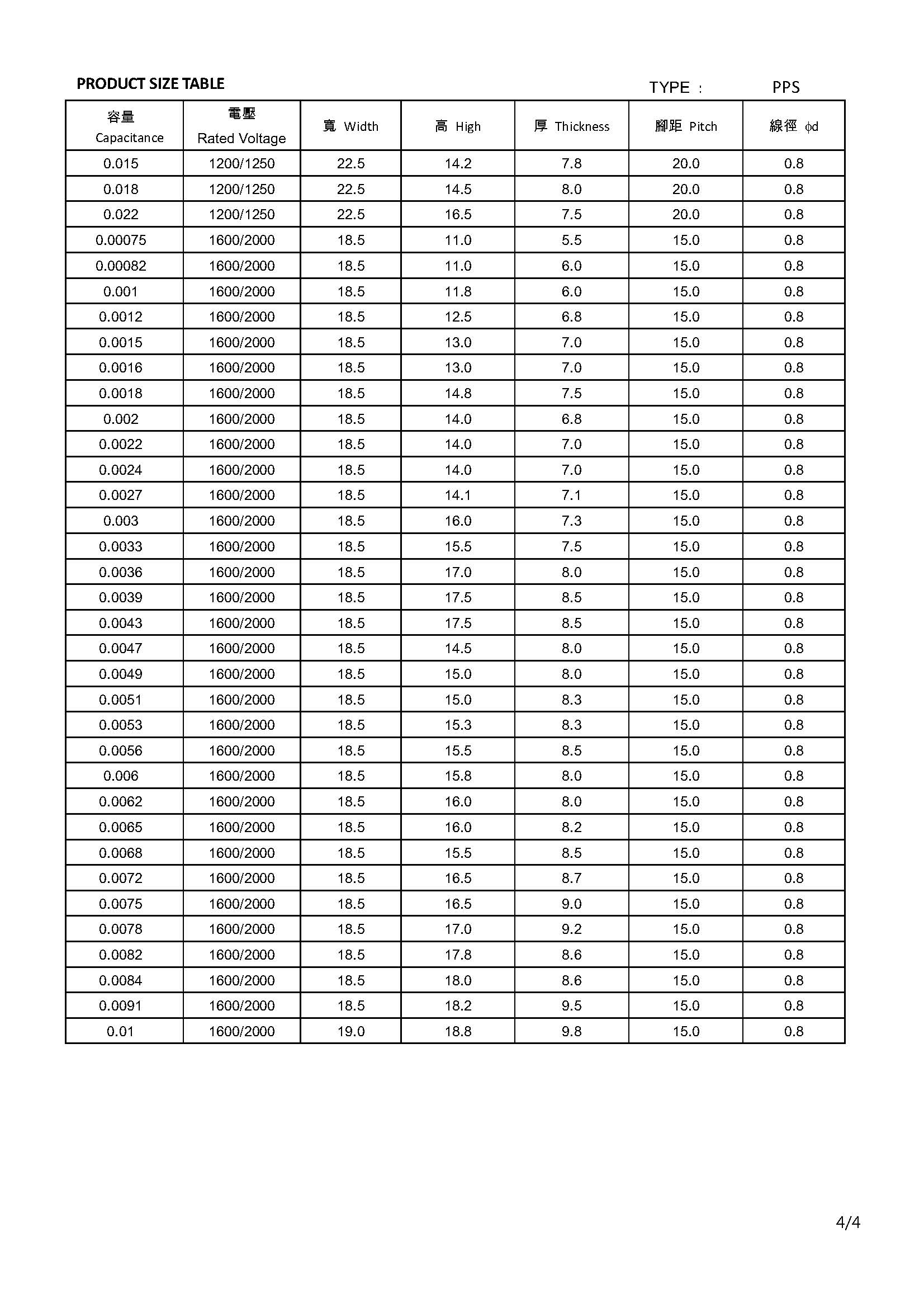

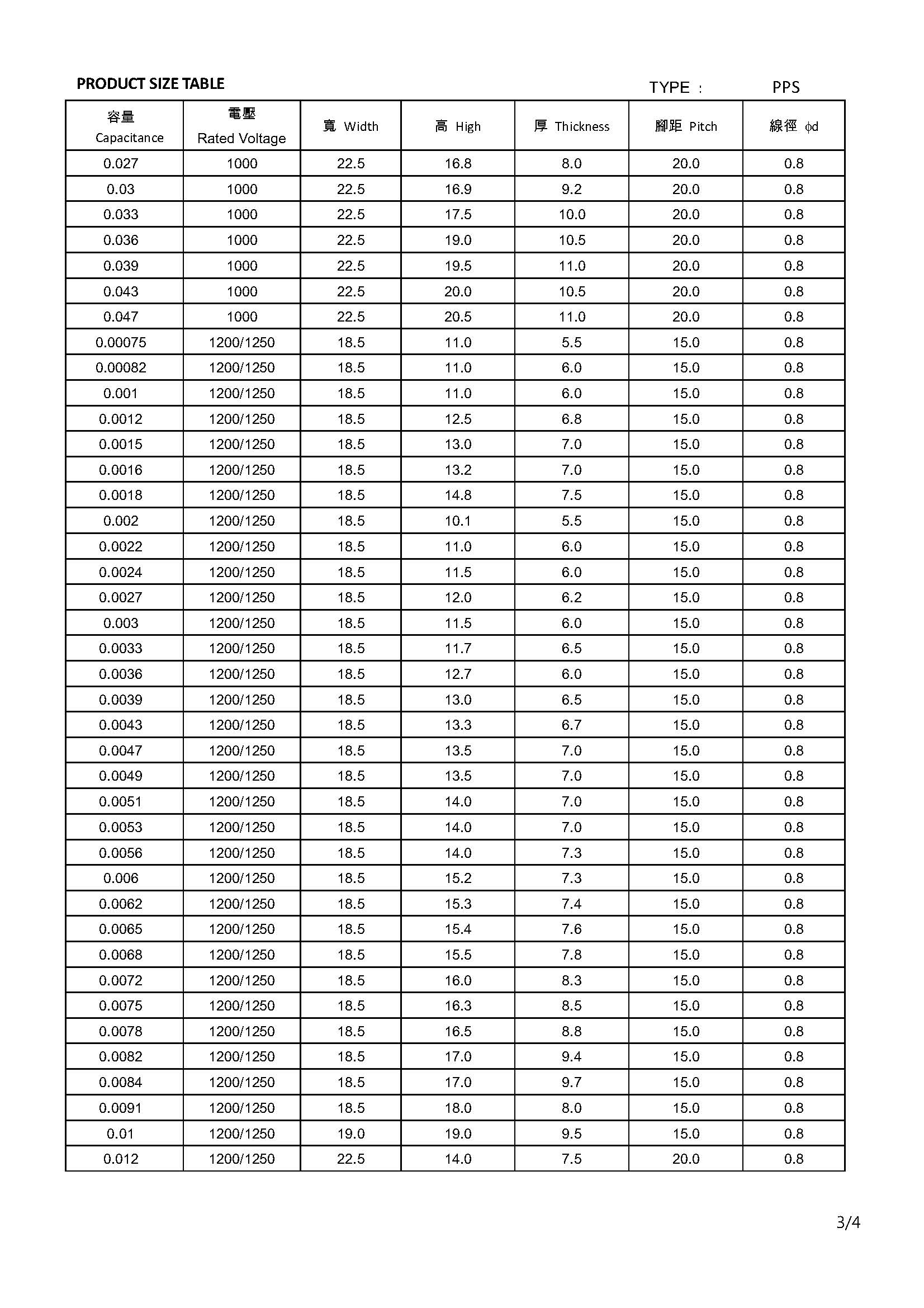

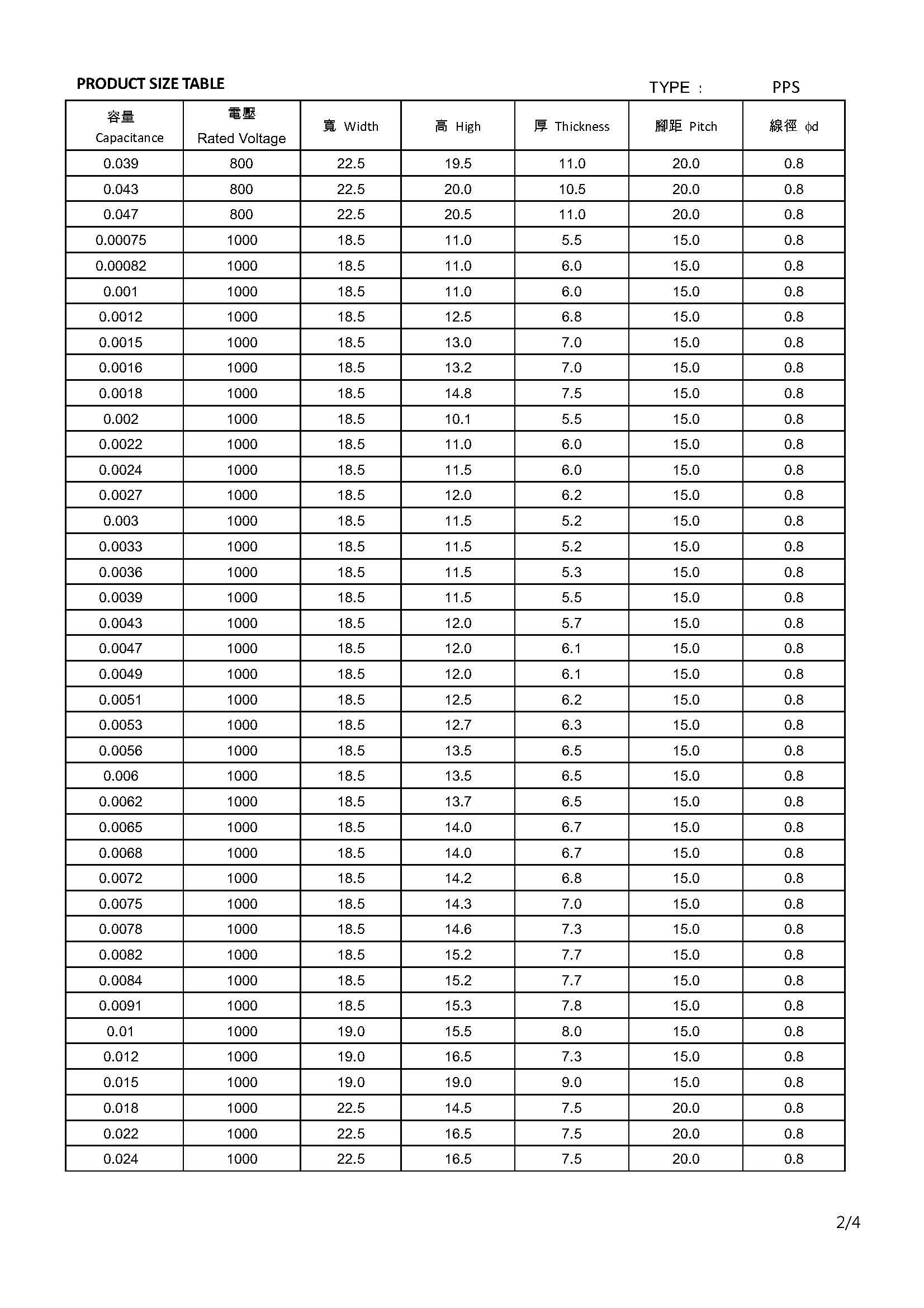

Capacitor Range :0.0001uF ~ 0.33µF

Rated Voltages :630/800/1000/1250/1600/2000VDC

Tolerance : J(±5%),K(±10%), M(±20%)

Temperature range : -40°C ~ +110°C

Dissipation Factor(DF) :<=0.08% max. (at20˚C,1KHz)
