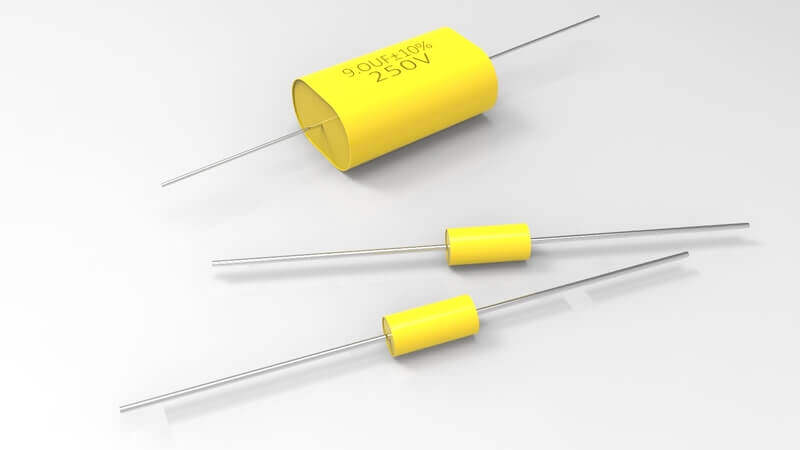

MEM (MINI BOX) Series | MEM 63/100/250/400/630VDC

Metallized Polyester Film Capacitor

MEM (MINI BOX) Series | MEM 63/100/250/400/630VDC

Metallized Polyester Miniature size

PRODUCT FEATURE

*Metalized polyster film, general type

*Good temperature resistant

APPLICATION

*General usages

*Small dimensions for mount PCB


Product Manual

Capacitor Range : 0.001uF~1.2uF

Rated Voltages :63/100/250/400/630VDC

Tolerance : J(±5%),K(±10%)

Temperature range : -40°C ~ +105°C

Dissipation Factor(DF) :<=1.0% max. (at20˚C,1KHz)


Specification Manual
