PMP Series | PMP 850/1000/1250/1600/2000/3000VDC

Metallized Polyester Film Capacitor

PMP Series | PMP 850/1000/1250/1600/2000/3000VDC

Polypropylene Film/Foil

产品特征

*串联型产品

*电压，电流耐受性高

*高Dv/Dt

产品特色&性能及应用领域

*适用于升压回路

*LLC谐振回路

*高频大电流回路

*大电流充放电回路


产品说明

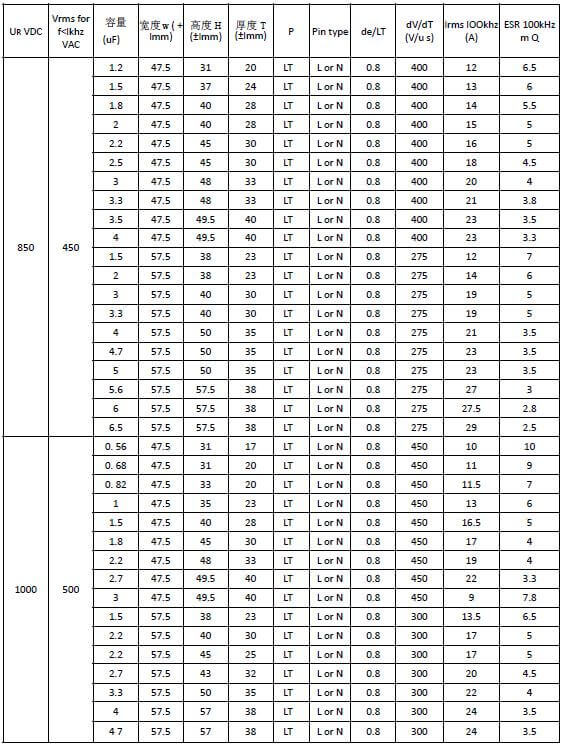

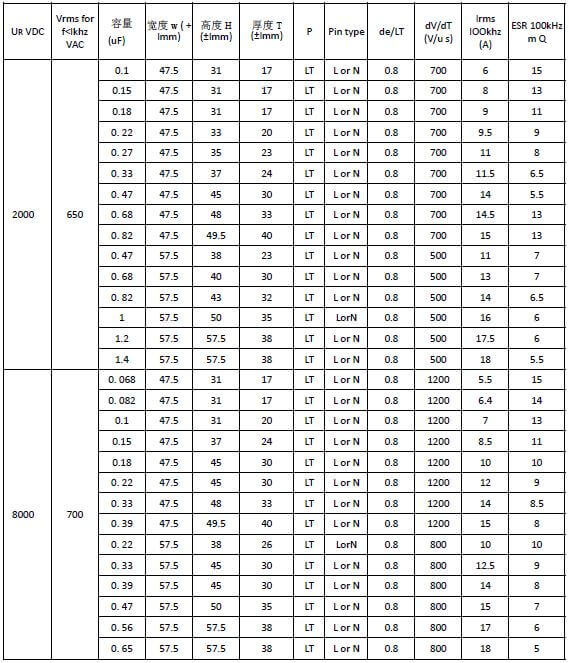

Capacitor Range :0.0068uF ~ 6.5µF

Rated Voltages :850/1000/1250/1600/2000/3000VDC

Tolerance : J(±5%),K(±10%), M(±20%)

Temperature range : -40°C ~ +100°C

Dissipation Factor(DF) :<=0.1% max. (at20˚C,1KHz)


规格说明
