PMM Series | PMM 630/800/1000/1600/2000/2500VDC

Metallized Polyester Film Capacitor

PMM Series | PMM 630/800/1000/1600/2000/2500VDC

Metallized Polypropylene Film

产品特征

*串联型产品

*电压，电流耐受性高

*高Dv/Dt

产品特色&性能及应用领域

*适用于升压回路

*LLC谐振回路

*高频大电流回路

*大电流充放电回路


产品说明

Capacitor Range :0.001uF ~ 0.33µF

Rated Voltages :630/800/1000/1600/2000/2500VDC

Tolerance : J(±5%),K(±10%), M(±20%)

Temperature range : -40°C ~ +100°C

Dissipation Factor(DF) :<=0.1% max. (at20˚C,1KHz)

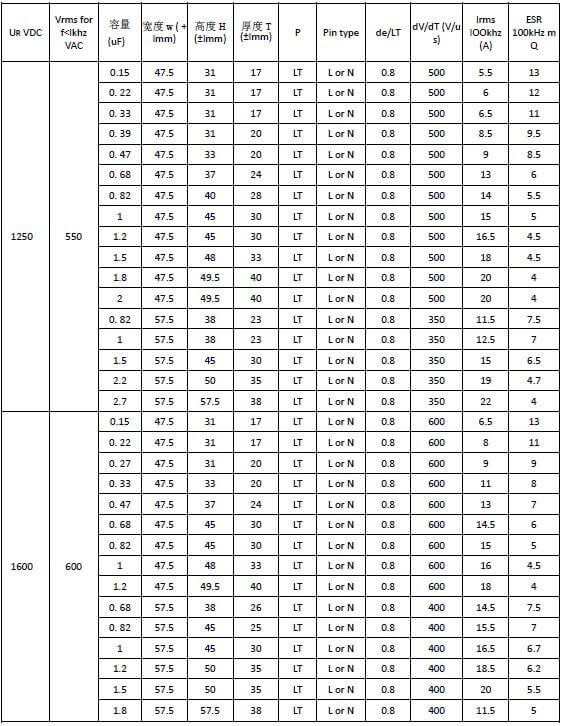

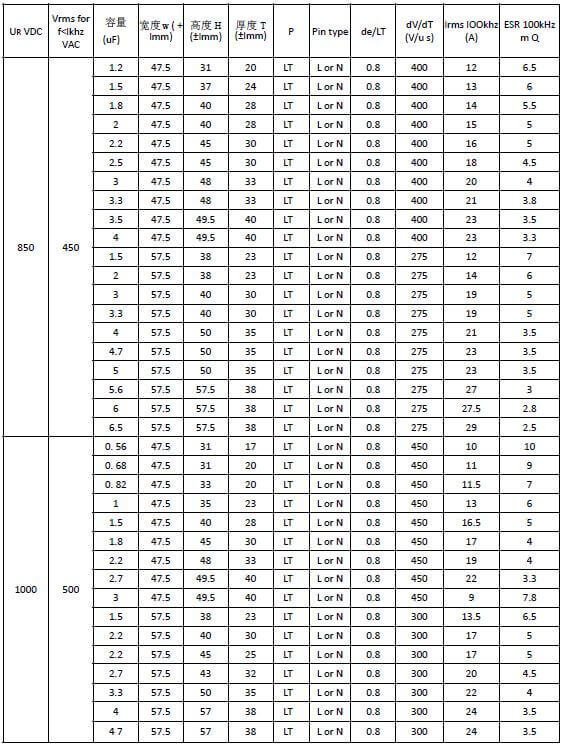

规格说明
