PPN Series | PPN 250/400/630/1000VDC

Metallized Polyester Film Capacitor

PPN Series | PPN 250/400/630/1000VDC

Polypropylene Film Capacitor

产品特征

*无感型制程

*薄膜加铝，无金属化产品之自愈游离现象

*对于高频时生容量变化及DF值变化极低

*电极为铝箔，电流通过平均滤波效果稳定

产品特色&性能及应用领域

高阶滤波回路

*音响功放滤波

*网络通信及CATV产品波形修正

*大电流回路运用


产品说明

Capacitor Range :0.00039µF ~ 0.47µF

Rated Voltages :250/400/630/1000VDC

Tolerance : J(±5%),K(±10%), M(±20%)

Temperature range : -40°C ~ +105°C

Dissipation Factor(DF) :<=0.1% max. (at20˚C,1KHz)

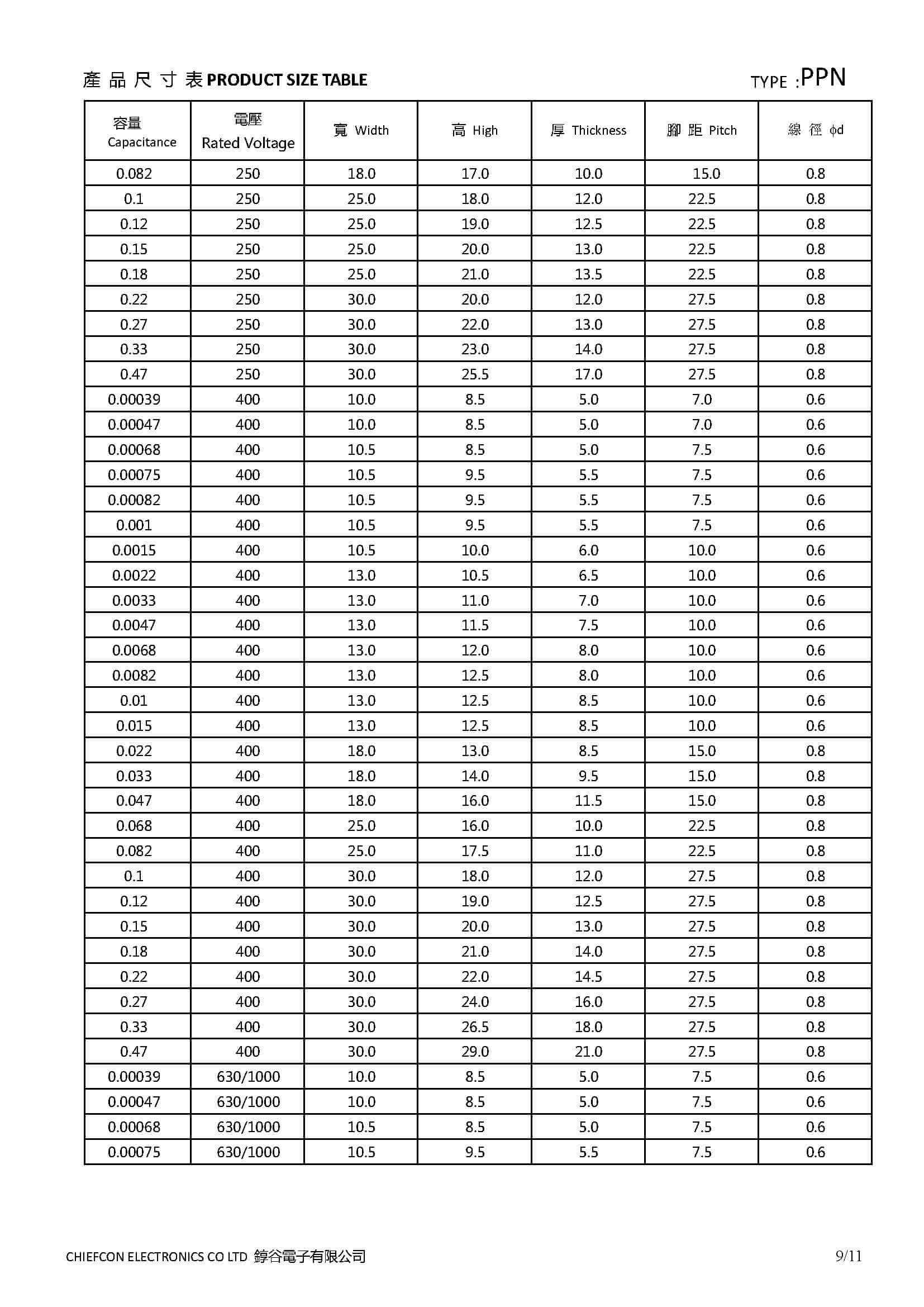

规格说明
