MPE Series | MPE 100/250/400/630/1000VDC

Metallized Polyester Film Capacitor

MPE Series | MPE 100/250/400/630/1000VDC

Metallized Polyester Film Capacitor

产品特征

*PE材质，常规型

*高温环境耐受好

产品特色&性能及应用领域

*适用于一般电子回路使用

*适用在较高温度时


产品说明

Capacitor Range : 0.01uF~6.8uF

Rated Voltages :100/250/400/630VDC

Tolerance : J(±5%),K(±10%),M(±20%)

Temperature range : -40°C ~ +125°C

Dissipation Factor(DF) :<=0.8% max. (at20˚C,1KHz)

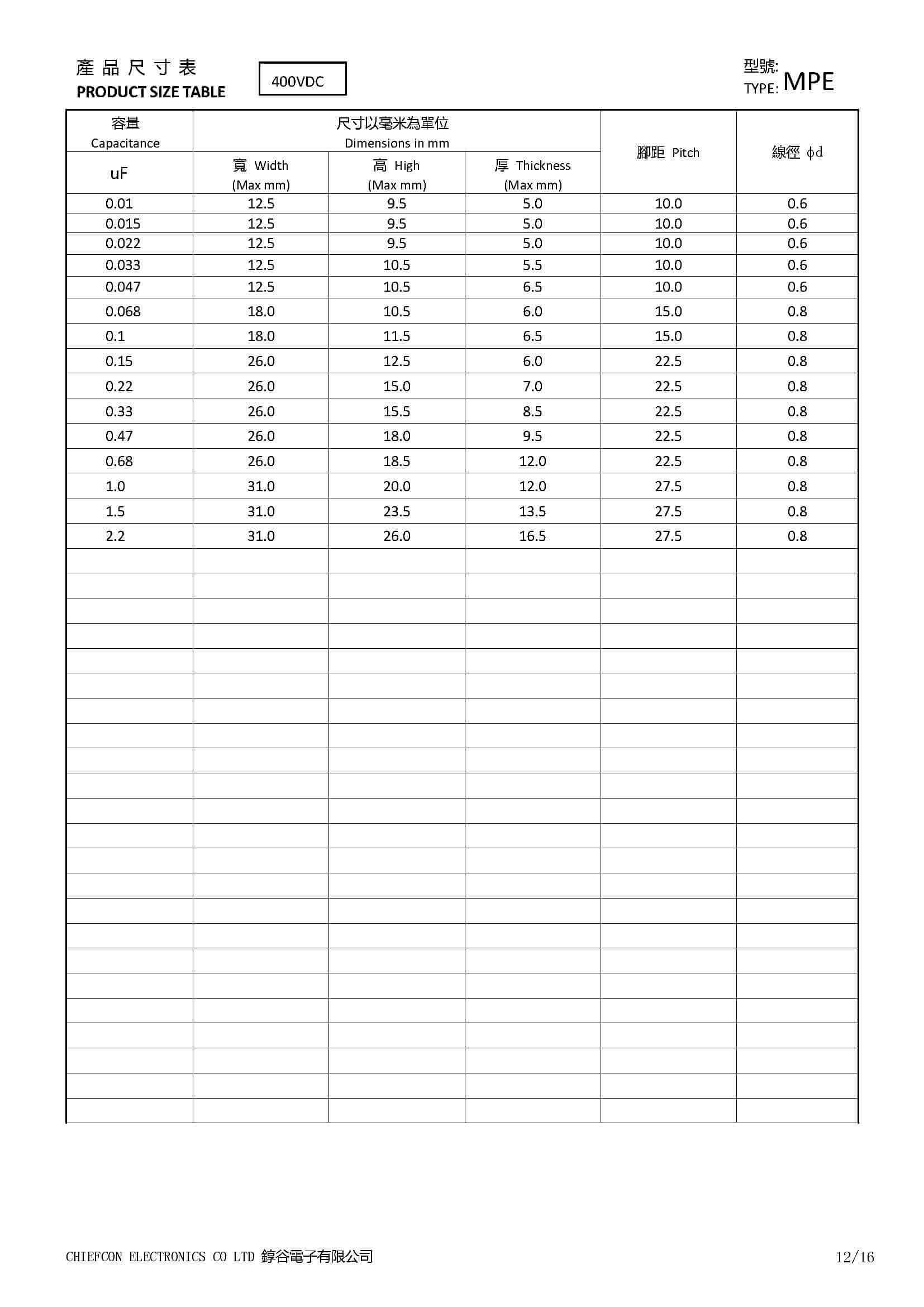

规格说明
